Category Archives: SQL Server

Creating ODBC system DNS with command line

%WINDIR%\System32\odbcconf.exe CONFIGSYSDSN "SQL Server" "DSN=macoprod|Description=macoprod|SERVER=10.2.151.18|Trusted_Connection=No|Database=macoprod"
%WINDIR%\SysWOW64\odbcconf.exe CONFIGSYSDSN "SQL Server" "DSN=macoprod|Description=macoprod|SERVER=10.2.151.18|Trusted_Connection=No|Database=macoprod"

Example of an Indexed View in SQL Server

CREATE VIEW C_FINANCEENTRYPV WITH SCHEMABINDING AS
  SELECT
     ACCOUNTNUMBER
    ,ENTRYDATE
    ,Sum(IsNull(FINANCEENTRY.DEBITBASE,0))  DEBITBASE
    ,Sum(IsNull(FINANCEENTRY.CREDITBASE,0)) CREDITBASE
    ,Count_Big(*) CNT
  FROM
    dbo.FINANCEENTRY FINANCEENTRY
GROUP BY
    ACCOUNTNUMBER,
    ENTRYDATE
GO
CREATE UNIQUE CLUSTERED INDEX C_FINANCEENTRYPV_01 ON C_FINANCEENTRYPV (
  ACCOUNTNUMBER,
  ENTRYDATE
)
GO
SELECT * FROM C_FINANCEENTRYPV WITH (NOEXPAND)

How to Allow Remote TCP/IP Connections for SQL Server

  1. SQL Server Configuration Manager > SQL Server Network Configuration > Protocols for SQLEXPRESS > TCP/IP
    TCP/IP Enabled
    IPAll > TCP Dynamic Ports is blank
    IPAll > TCP Port = 1433
  2. SQL Server Management Studio > Server Properties > Security
    Server authentication = SQL Server and Windows Authentication mode
  3. Services > SQL Server Browser
    Enable and start
  4. Windows Firewall with Advanced Security > Inbound Rules > New Rule… > Port
    Allow the connection for the port 1433

Misc. Dates – SQL Server

SELECT

  DATEADD(YEAR, DATEDIFF(YEAR, 0, GETDATE()) - 1, 0)                    AS FIRST_DAY_PREVIOUS_YEAR,
  DATEADD(YEAR, DATEDIFF(YEAR, 0, GETDATE()), 0)                        AS FIRST_DAY_CURRENT_YEAR,
  DATEADD(YEAR, DATEDIFF(YEAR, 0, GETDATE()) + 1, 0)                    AS FIRST_DAY_NEXT_YEAR,

  DATEADD(YEAR, DATEDIFF(YEAR, -1, GETDATE()) - 1, -1)                  AS LAST_DAY_PREVIOUS_YEAR,
  DATEADD(YEAR, DATEDIFF(YEAR, -1, GETDATE()), -1)                      AS LAST_DAY_CURRENT_YEAR,
  DATEADD(YEAR, DATEDIFF(YEAR, -1, GETDATE()) + 1, -1)                  AS LAST_DAY_NEXT_YEAR,

  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) - 1, 0)                  AS FIRST_DAY_PREVIOUS_MONTH,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()), 0)                      AS FIRST_DAY_CURRENT_MONTH,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) + 1, 0)                  AS FIRST_DAY_NEXT_MONTH,

  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) - 1, -1)                AS LAST_DAY_PREVIOUS_MONTH,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()), -1)                    AS LAST_DAY_CURRENT_MONTH,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) + 1, -1)                AS LAST_DAY_NEXT_MONTH,

  DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()) - 1, 0)                      AS YESTERDAY,
  DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0)                          AS TODAY,
  DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()) + 1, 0)                      AS TOMORROW,

  DATEADD(WEEK, DATEDIFF(WEEK,0,GETDATE() - 7), 0)                      AS PREVIOUS_MONDAY,
  DATEADD(WEEK, DATEDIFF(WEEK,0,GETDATE()), 0)                          AS CURRENT_MONDAY,
  DATEADD(WEEK, DATEDIFF(WEEK,0,GETDATE() + 7), 0)                      AS NEXT_MONDAY,

  DATEADD(WEEK, DATEDIFF(WEEK,0,GETDATE()), 0) - 1                      AS PREVIOUS_SUNDAY,
  DATEADD(WEEK, DATEDIFF(WEEK,0,GETDATE() + 7), 0) - 1                  AS CURRENT_SUNDAY,
  DATEADD(WEEK, DATEDIFF(WEEK,0,GETDATE() + 14), 0) - 1                 AS NEXT_SUNDAY,

  DATEADD(YEAR, 1, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))        AS THE_DAY_PLUS_1YEAR,
  DATEADD(YEAR, -1, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))       AS THE_DAY_MINUS_1YEAR,

  DATEADD(MONTH, 1, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))       AS THE_DAY_1_MONTH_AGO,
  DATEADD(MONTH, 2, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))       AS THE_DAY_2_MONTH_AGO,
  DATEADD(MONTH, 3, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))       AS THE_DAY_3_MONTH_AGO,
  DATEADD(MONTH, 4, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))       AS THE_DAY_4_MONTH_AGO,
  DATEADD(MONTH, 5, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))       AS THE_DAY_5_MONTH_AGO,
  DATEADD(MONTH, 6, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))       AS THE_DAY_6_MONTH_AGO,

  DATEADD(MONTH, -1, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))      AS THE_DAY_1_MONTHS_AHEAD,
  DATEADD(MONTH, -2, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))      AS THE_DAY_2_MONTHS_AHEAD,
  DATEADD(MONTH, -3, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))      AS THE_DAY_3_MONTHS_AHEAD,
  DATEADD(MONTH, -4, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))      AS THE_DAY_4_MONTHS_AHEAD,
  DATEADD(MONTH, -5, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))      AS THE_DAY_5_MONTHS_AHEAD,
  DATEADD(MONTH, -6, DATEADD(DAY, DATEDIFF(DAY, 0, GETDATE()), 0))      AS THE_DAY_6_MONTHS_AHEAD,

  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) - 2, 0)                  AS FIRST_DAY_2_MONTHS_AGO,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) - 3, 0)                  AS FIRST_DAY_3_MONTHS_AGO,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) - 4, 0)                  AS FIRST_DAY_4_MONTHS_AGO,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) - 5, 0)                  AS FIRST_DAY_5_MONTHS_AGO,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) - 6, 0)                  AS FIRST_DAY_6_MONTHS_AGO,

  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) + 2, 0)                  AS FIRST_DAY_2_MONTHS_AHEAD,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) + 3, 0)                  AS FIRST_DAY_3_MONTHS_AHEAD,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) + 4, 0)                  AS FIRST_DAY_4_MONTHS_AHEAD,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) + 5, 0)                  AS FIRST_DAY_5_MONTHS_AHEAD,
  DATEADD(MONTH, DATEDIFF(MONTH, 0, GETDATE()) + 6, 0)                  AS FIRST_DAY_6_MONTHS_AHEAD,

  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) - 2, -1)                AS LAST_DAY_2_MONTHS_AGO,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) - 3, -1)                AS LAST_DAY_3_MONTHS_AGO,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) - 4, -1)                AS LAST_DAY_4_MONTHS_AGO,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) - 5, -1)                AS LAST_DAY_5_MONTHS_AGO,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) - 6, -1)                AS LAST_DAY_6_MONTHS_AGO,

  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) + 2, -1)                AS LAST_DAY_2_MONTHS_AHEAD,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) + 3, -1)                AS LAST_DAY_3_MONTHS_AHEAD,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) + 4, -1)                AS LAST_DAY_4_MONTHS_AHEAD,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) + 5, -1)                AS LAST_DAY_5_MONTHS_AHEAD,
  DATEADD(MONTH, DATEDIFF(MONTH, -1, GETDATE()) + 6, -1)                AS LAST_DAY_6_MONTHS_AHEAD

Creating Aggregate Tables

Leave a reply

This post demonstrates an example how to create aggregation tables in Kettle.

Let’s assume the original transformation loading delta is the following:

It reads data from source database, makes some transformations and loads data into data warehouse.

The source table JobEntry has two grouping fields project_id and employee_id and one additive measure registered_hrs. The task is to update aggregate tables (by project_id, and by employee_id) without complete rebuilding them.

Before updating the fact table in data warehouse, we need to retain the current value from the fact table (step Get previous fact value). After the fact table is updated, we are updating the aggregate tables. We calculate difference between the new and old value (step Calculate change), summarize the change of value to necessary granularity (steps Sort rows, Aggregate), and add the change to the value in the aggregate table (steps Get old agg.value, Calculate new value, Insert/update agg table). The transformation may look like this:

Demo Data (SQL Server)

The source database table:

create table JobEntry (
  project_id int,
  employee_id int,
  registered_hrs numeric(22,2)
)

The script changing the table (updating existing or inserting new rows):

declare
   @project_id int = RAND() * 3,
   @employee_id int = RAND() * 3,
   @registered_hrs numeric(22,2) = RAND() * 10

declare @cnt int = (
      select COUNT(*) from JobEntry
      where employee_id = @employee_id
      and project_id = @project_id
   )

if @cnt = 0
begin
   insert JobEntry values (
      @project_id,
      @employee_id,
      @registered_hrs
   )
end
else begin
   update JobEntry set registered_hrs = @registered_hrs
   where employee_id = @employee_id
   and project_id = @project_id
end

select * from JobEntry

The transformation

The data warehouse tables:

create table f_jobentry(
  project_id int,
  employee_id int,
  registered_hrs decimal(22,2)
);
create table f_jobentry_employee (
  employee_id int,
  registered_hrs decimal(22,2)
);
create table f_jobentry_project (
  project_id int,
  registered_hrs decimal(22,2)
);

Kettle transformation

Test

  • Create the necessary tables.
  • Run the script generating data.
  • Run the transformation updating the fact table and aggregate tables.
  • Check the output tables.
  • Run the script.
  • Run the transformation.
  • Check the output tables.

Summary

This approach seems too complex. Maybe the complete rebuilding the aggregate tables is not bad…

How to Find Running Queries – SQL Server

SELECT
  CN.session_id  AS SPID,
  ST.text        AS SqlStatementText
FROM
  sys.dm_exec_connections AS CN
CROSS APPLY
  sys.dm_exec_sql_text(CN.most_recent_sql_handle) AS ST
ORDER BY
  CN.session_id

If a BusinessObjects document is refreshing for a long time, you might be interested in what query is currently running (to optimize it). The above code can help to figure out this.

Hierarchical (Recursive) Queries in SQL Server

Leave a reply

This code sample demonstrates recursive queries in SQL Server.

The query returns paths of Kettle transformations.

with Parent as
(
   select
      ID_DIRECTORY
   ,  ID_DIRECTORY_PARENT
   ,  cast(DIRECTORY_NAME
         as varchar(255)) as DIRECTORY_PATH
   from
      R_DIRECTORY
   where
      ID_DIRECTORY_PARENT = 0
   union all
   select
      TH.ID_DIRECTORY
   ,  TH.ID_DIRECTORY_PARENT
   ,  cast(Parent.DIRECTORY_PATH
         + '/' + DIRECTORY_NAME
         as varchar(255)) as DIRECTORY_PATH
   from
      R_DIRECTORY TH
   inner join
      Parent
   on
      Parent.ID_DIRECTORY = TH.ID_DIRECTORY_PARENT
)
select
   coalesce(dir.DIRECTORY_PATH, '/') DIRECTORY_PATH
,  trans.NAME as TRANSFORMATION_NAME
from
   Parent dir
right join
   R_TRANSFORMATION trans
on
   dir.ID_DIRECTORY = trans.ID_DIRECTORY

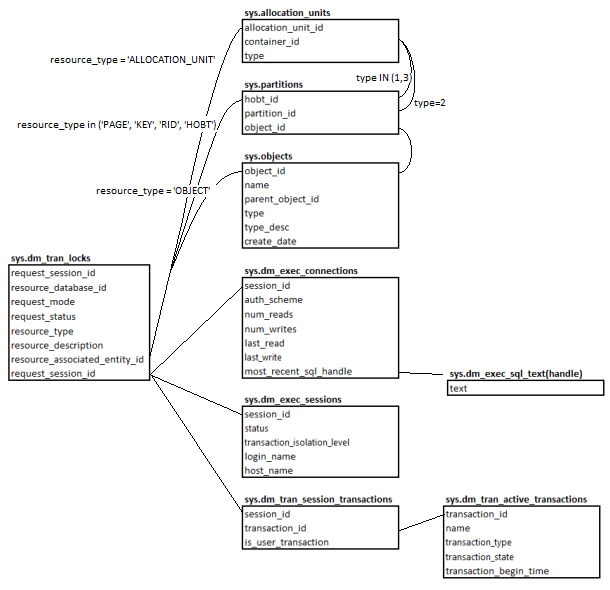

Lock information in SQL Server

1 Reply

The script gets miscellaneous information about locks including SQL.

SELECT
  L.request_session_id              AS SPID,
  DB_NAME(L.resource_database_id)   AS DatabaseName,
  L.request_mode                    AS LockType,
  L.request_status                  AS RequestStatus,
  L.resource_type                   AS ResourceType,
  L.resource_description            AS ResourceDescription,
  L.resource_associated_entity_id   AS ResourceAssociatedEntryId,
  -- Object
  O.name                            AS ObjectName,
  O.object_id                       AS ObjectId,
  -- SQL
  ST.text                           AS SqlStatementText,
  CN.auth_scheme                    AS AuthenticationMethod,
  -- Session
  ES.login_name                     AS LoginName,
  ES.host_name                      AS HostName,
  -- Transaction
  TST.is_user_transaction           AS IsUserTransaction,
  AT.name                           AS TransactionName,
  AT.transaction_begin_time         AS TransactionBeginTime
FROM
  sys.dm_tran_locks L
  -- Object
  LEFT JOIN sys.objects O ON O.object_id = (
    CASE
      WHEN resource_type IN ('PAGE', 'KEY', 'RID', 'HOBT')
        THEN (
          SELECT P.object_id
          FROM sys.partitions P
          WHERE P.hobt_id = L.resource_associated_entity_id
        )
      WHEN resource_type = 'OBJECT'
        THEN L.resource_associated_entity_id
      WHEN resource_type = 'ALLOCATION_UNIT'
        THEN (
          SELECT P.object_id FROM sys.partitions P
          INNER JOIN sys.allocation_units AU
          ON AU.container_id = (
            CASE
              WHEN AU.type IN (1,3) THEN P.hobt_id
              WHEN AU.type = 2 THEN P.partition_id
            END
          )
          WHERE AU.allocation_unit_id = L.resource_associated_entity_id
        )
    END
  )
  -- SQL
  LEFT JOIN sys.dm_exec_connections CN
  ON CN.session_id = L.request_session_id
  CROSS APPLY sys.dm_exec_sql_text(CN.most_recent_sql_handle) AS ST
  -- Session
  LEFT JOIN sys.dm_exec_sessions ES
  ON ES.session_id = L.request_session_id
  -- Transaction
  LEFT JOIN sys.dm_tran_session_transactions TST
  ON TST.session_id = L.request_session_id
  LEFT JOIN sys.dm_tran_active_transactions AT
  ON AT.transaction_id = TST.transaction_id
ORDER BY
  L.request_session_id
